意法STM32系列芯片解密,STM32芯片破解

发布时间:2016-12-05 18:26:16

意法STM32系列芯片解密,STM32芯片破解

STM32系列32位微控制器,基于ARM® Cortex®‑M处理器。它能支持32位广泛的应用,支持包括高性能、实时功能、数字信号处理,和低功耗、低电压操作,同时拥有一个完全集成和易用的开发。

以STM32为应用的产品线非常广泛,是由于其基于工业标准的内核、有大量的工具和软件作支持,使该系列芯片成为众多产品的理想选择,不管是小终端,还是一个大型的平台。

基于上述优势所在,STM32系列芯片也有很多破解需求,板朗科技专业破解高难度芯片,对STM系列芯片有深入的研究,以下是关于STM32系列芯片解密介绍

STM32芯片实物图

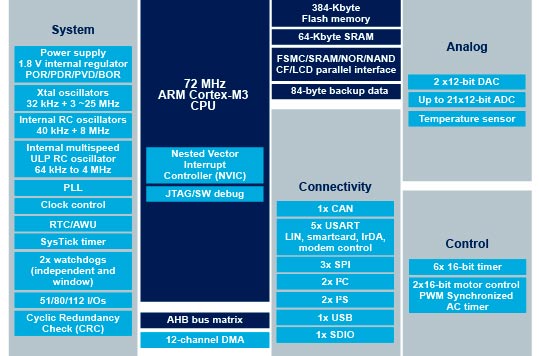

STM32系列芯片

STM32芯片官方参考文档

PLD芯片解密文档

STM32系统结构

STM32芯片结构

系统的主要部分包括:

四个驱动单元:

- Cortex-M3 内核指令总线 (I-bus)

数据总线 (D-bus)

以及系统总线 (S-bus)

- GP-DMA(通用DMA)

三个被动单元:

- 内部 SRAM

- 内部闪存存储器

- AHB 到 APB 桥 (AHB2APBx)该桥用来连接所有的APB 设备这些通过一个多级的AHB 总线构架相互连接

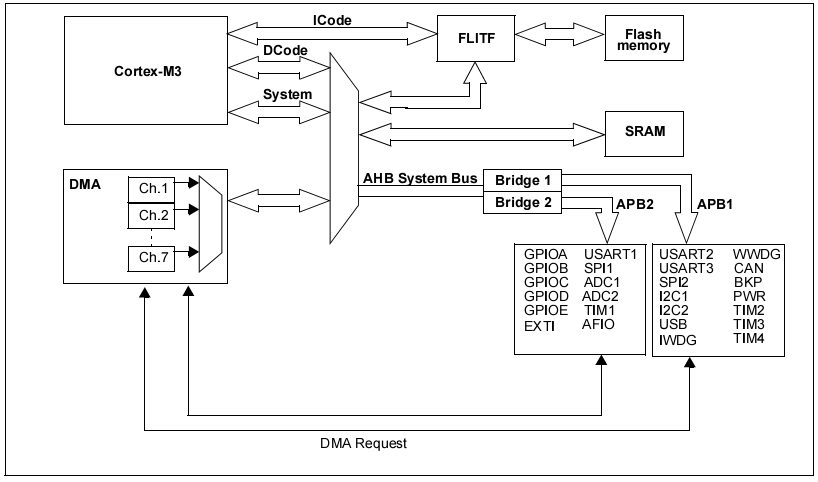

STM32芯片架构

ICode 总线

该总线将 Cortex-M3 内核的指令总线与闪存存储器指令接口相连接。指令预取操作在该总线上进行。

DCode 总线

该总线将Cortex-M3内核的DCode总线与闪存存储器的数据接口相连接(常量加载和调试访问)。

系统总线

该总线将 Cortex-M3 内核的系统总线(外设总线)连接到一个总线矩阵,总线矩阵协调着内核和DMA 间的访问。

DMA 总线

该总线将DMA的AHB主机接口连接到一个总线矩阵,总线矩阵协调着CPU的DCode和DMA到SRAM、闪存和外设的访问。

总线矩阵

此总线矩阵协调内核系统总线和DMA主控总线之间的访问仲裁。此仲裁利用轮换算法。此总线矩阵由三个驱动部件(CPU的DCode、系统总线和DMA总线)和三个被动部件(闪存存储器接口、SRAM和AHB2APB桥)构成。

为了允许DMA 访问,AHB 外设通过一个总线矩阵连接到系统总线。

AHB/APB 桥 (APB)

两个 AHB/APB 桥在AHB 和两个APB 总线之间提供完全同步的连接。APB1 被限制在36 MHz, APB2 工作在全速状态 (根据设备的不同可以达到72 MHz)。

存储器结构

程序存储器、数据存储器、寄存器和 I/O 端口被组织到一个4G 字节的线性地址空间。

这些字节在存储器小端格式编码,在小端格式中,一个字中最低地址的字节为该字的最低位字节,最高地址的字节为最高位字节。

可寻址的存储器空间被分为8 个512MB 的主块。

所有未分配给片上存储器或外设的存储区域被视为是保留的。

存储器映射

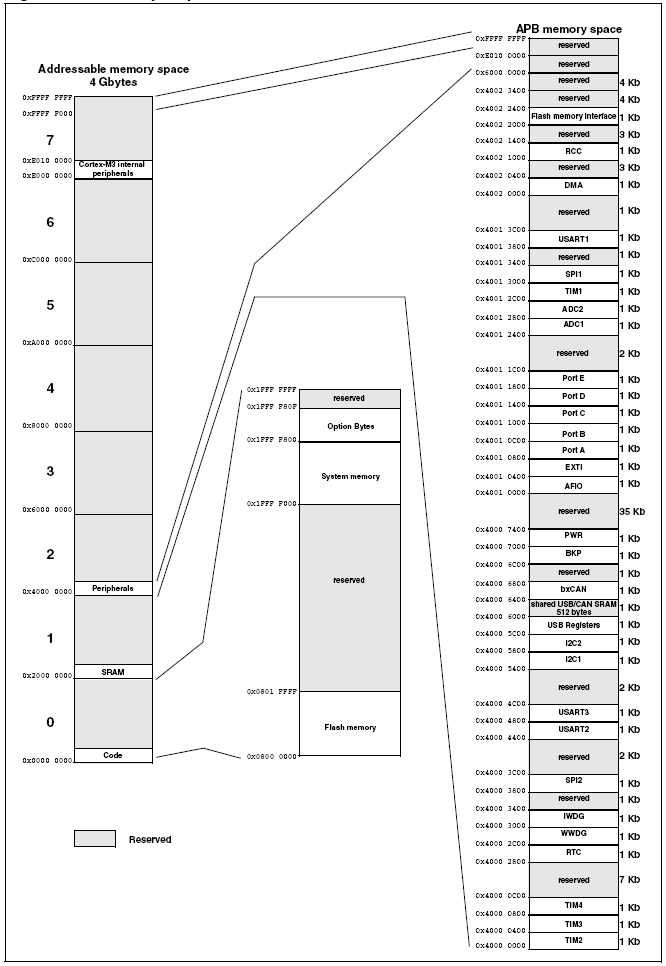

STM32芯片存储映射

边界地址 外设 总线

0x4002 2400 - 0x4002 3FFF 保留

AHB

0x4002 2000 - 0x4002 23FF 闪存存储器接口

0x4002 1400 - 0x4002 1FFF 保留

0x4002 1000 - 0x4002 13FF 复位和时钟控制RCC

0x4002 0400 - 0x4002 0FFF 保留

0x4002 0000 - 0x4002 03FF DMA

0x4001 3C00 - 0x4001 3FFF 保留

APB2

0x4001 3800 - 0x4001 3BFF USART1

0x4001 3400 - 0x4001 37FF 保留

0x4001 3000 - 0x4001 33FF SPI 1

0x4001 2C00 - 0x4001 2FFF TIM1 定时器

0x4001 2800 - 0x4001 2BFF ADC2

0x4001 2400 - 0x4001 27FF ADC1

0x4001 2000 - 0x4001 1FFF 保留

0x4001 1800 - 0x4001 1BFF GPIO 端口 E

0x4001 1400 - 0x4001 17FF GPIO 端口 D

0x4001 1000 - 0x4001 13FF GPIO 端口 C

0x4001 0C00 - 0x4001 0FFF GPIO 端口 B

0x4001 0800 - 0x4001 0BFF GPIO 端口 A

0x4001 0400 - 0x4001 07FF EXIT

0x4001 0000 - 0x4001 03FF AFIO

0x4000 8000 - 0x4000 77FF 保留

APB1

0x4000 7000 - 0x4000 73FF 电源控制(PWR)

0x4000 6C00 - 0x4000 6FFF 备份寄存器(BKP)

0x4000 6800 - 0x4000 6BFF 保留

0x4000 6400 - 0x4000 67FF bxCAN

0x4000 6000 - 0x4000 63FF 共享的USB/CAN SRAM

512 字节

0x4000 5C00 - 0x4000 5FFF USB 寄存器

0x4000 5800 - 0x4000 5BFF I2C2

0x4000 5400 - 0x4000 57FF I2C1

0x4000 5000 - 0x4000 4FFF 保留

0x4000 4800 - 0x4000 4BFF USART3

0x4000 4400 - 0x4000 47FF USART2

0x4000 4000 - 0x4000 3FFF 保留

0x4000 3800 - 0x4000 3BFF SPI2

0x4000 3400 - 0x4000 37FF 保留

0x4000 3000 - 0x4000 33FF 独立的看门狗(IWDG)

0x4000 2C00 - 0x4000 2FFF 窗口看门狗(WWDG)

0x4000 2800 - 0x4000 2BFF RTC

0x4000 2400 - 0x4000 0FFF 保留

0x4000 0800 - 0x4000 0BFF TIM4 定时器

0x4000 0400 - 0x4000 07FF TIM3 定时器

0x4000 0000 - 0x4000 03FF TIM2 定时器

嵌入式SRAM

STM32F10x 内置20K 字节的静态SRAM,可以以字节、半字(16 位)、字(32 位)的方式访问,SRAM 的起始地址为0x2000 0000。

位段

TM32F10x 里,外设寄存器和SRAM 都被映射到一个位段区里,这允许执行单一的位段的写和读操作。

下面的映射公式给出了别名区中的每个字是如何对应位带区的相应位的:

bit_word_addr = bit_band_base + (byte_offset x 32) + (bit_number × 4)

其中:

− bit_word_addr 是别名存储器区中字的地址,它映射到某个目标位。

− bit_band_base 是别名区的起始地址。

− byte_offset 是包含目标位的字节在位段里的序号

− bit_number 是目标位所在位置(0-31)

下面的例子说明如何映射别名区中SRAM 地址为0x20000300 的字节中的位2:

0x22006008 = 0x22000000 + (0x300*32) + (2*4).

对0x22006008 地址的写操作和对SRAM 中地址0x20000300 字节的位2 执行读-改-写操作有着相同的效果。

读0x22006008 地址返回SRAM 中地址0x20000300 字节的位2 的值(0x01 or 0x00)。
